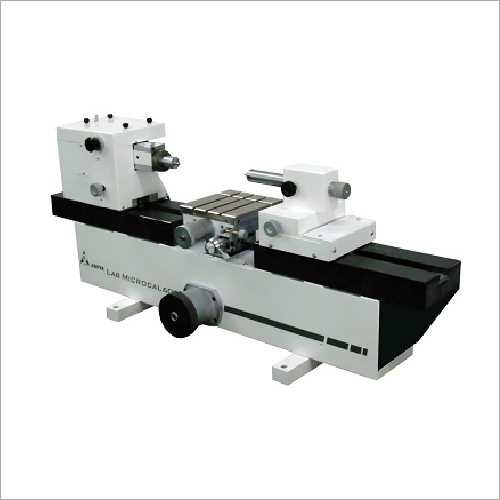

Universal Length Measuring Machine

Universal Length Measuring Machine

Product Details:

X

Price And Quantity

  • 1 Unit

Trade Information

  • Cash in Advance (CID), Cheque
  • Per Month
  • Days
  • All India

Product Description

Universal length measuring machine is helpful for measuring different kinds of limit gauges, measuring instruments, standards, and thread, spline, etc. It is employed for things whose geometric relationships are more important than absolute coordinates. In addition to this, the said product places a lot of importance on sphere diameter measurements. Typically, a comparative approach or direct method employing a 1D linear measuring device is used to measure diameter. Universal length measuring machine is a device with the full range of mechanical calibration. It also observes the abbes principleover the entire measuring range, a constant measuring force is maintained.

Specification :

  • Measuring Range - External : 0-600 mm
  • Measuring Range - Internal : 3-450 mm with optical accessories
  • Instrument Uncertainty : 0.7 +L/1000 micrometer (0.4 +L/1000 micrometer) - On request
  • Resolution : 0.1 micrometer / 0.01 micrometer with optical accessories
  • Repeatability : 0.3 mircometer at +/- 2 sigma (0.2 micrometer at +/- 2 sigma)

Technical Details :

Instrument Uncertainty

(0.7+ L/1000)m

Reoeatability

0.3m at 2 Sigma

Resolution

0.1m / 10inch /0.01m

Measuring Range

External Size Absolute 0-100mm


Relative 0-670mm


Internal 10z-400mm

Direct Measuring range

100mm

Measuring Force

0-250 gm

Measuring Table Lift

70mm

Overall Dimension

960x390x450 mm

Net Machine Weight

150 Kg

Measuring Display Unit

Microcal-300
